Air-Cooled Distributed Series
Flexibility & Efficiency
- Modular design, easy production, installation and maintenance, short project delivery cycles
- Flexible deployment, plug and pla
Ultimate Safety
- IP54IP54 protection design, multi-layer fuse protection, fire prevention and explosion-proof to ensure fire safety
- Independent thermal management intelligent control, effective protection of the product life cycle
Intelligent Management
- All-in-one model equipped with AI technology, realizing intelligent management of all scene
- Diversified management strategy adjustment support to improve energy efficiency
Convenient Operation and Maintenance
- Real-time anomaly monitoring and alarming to improve troubleshooting efficiency
- Cloud-Edge Collaboration supports remote monitoring and reduces labor costs for on-site operation and maintenance

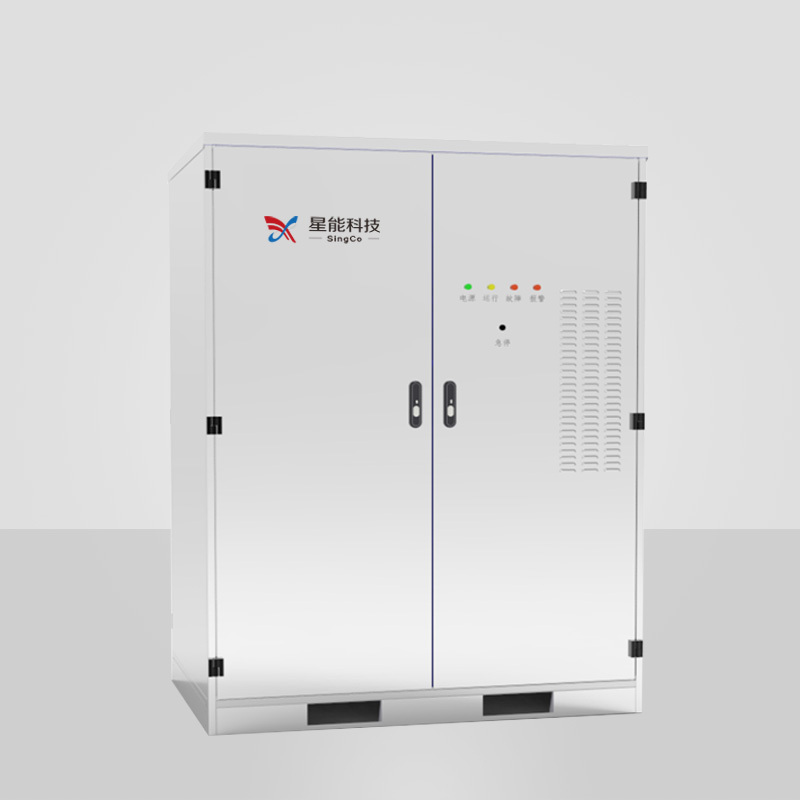

Air-Cooled Distributed Series Products
Flexibility & Efficiency
- Modular design, easy production, installation and maintenance, short project delivery cycles
- Flexible deployment, plug and play
Ultimate Safety
- IP54 protection design, multi-layer fuse protection, fire prevention and explosion-proof to ensure fire safety
- Independent thermal management intelligent control, effective protection of the product life cycle
Intelligent Management
- All-in-one model equipped with AI technology, realizing intelligent management of all scene
- Diversified management strategy adjustment support to improve energy efficiency
Convenient Operation and Maintenance
- Real-time anomaly monitoring and alarming to improve troubleshooting efficiency
- Cloud-Edge Collaboration supports remote monitoring and reduces labor costs for on-site operation and maintenance
Parameters
R215A2
Cell
C280
Grouping mode
1P16S * 15
Nominal voltage
768 V
Nominal energy
215kWh
Rated power
100kW
Maximum charge & discharge rate
0.5 P
IP Grade
IP54
Thermal management method
Intelligent air cooling
Operating temperature
0 – 50℃
Dimension (W/H/D) mm
1450 * 2280 * 1200
Weight
2300kg
Communication interface
RS485CANEthernet
Design life
>15 years
R215A2
Cell
C280
Grouping mode
1P16S * 15
Nominal voltage
768 V
Nominal energy
215 kWh
Rated power
100 kW
Maximum charge & discharge rate
0.5 P
IP Grade
IP54
Thermal management method
Intelligent air cooling
Operating temperature
0 – 50℃
Dimension (W/H/D) mm
1450 * 2280 * 1200
Weight
2300 kg
Communication interface
RS485CANEthernet
Design life
>15 years
