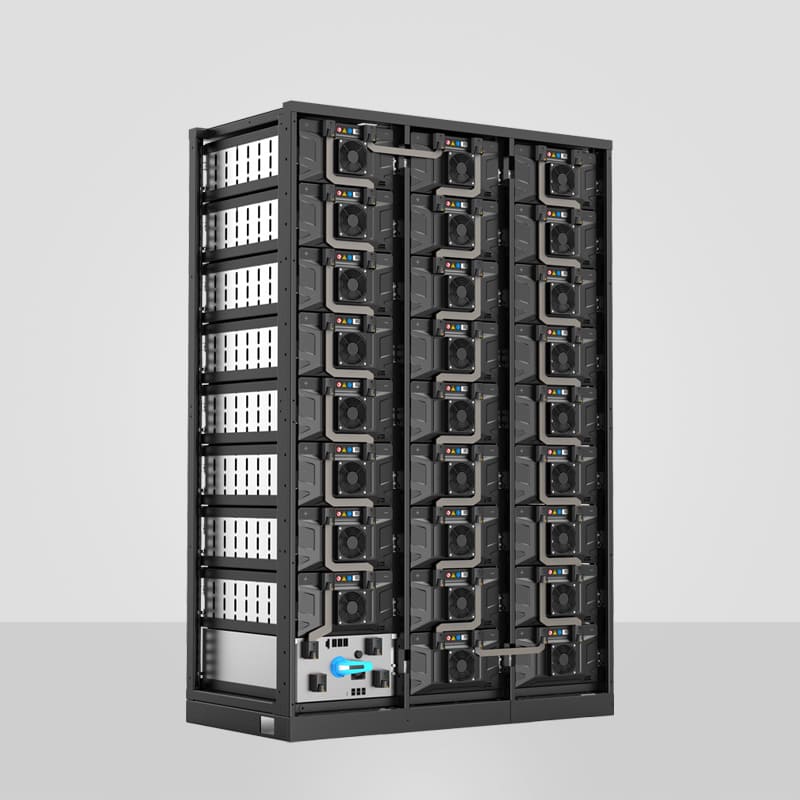

High Voltage Air-Cooled Battery Cluster
Modular Design
Highly integrated, redundancy-reducing design for easy transportation, installation, and maintenance
Safety and Reliability
IP54 protection level for the cabinet, double-layer flame retardant and explosion-proof design
Long life Mechanism
Perfect system air duct design, effective temperature control to extend system life
Intelligent Energy Management
Intelligent energy management control, adaptive load-side power generation. Remote monitoring, reducing manual on-site inspections
Parameters
R372A0
Cell
C280
Grouping mode
416S1P
Nominal voltage
1331.2 V
Voltage range
1164.8 – 1497.6 V
Nominal capacity
280 Ah
Nominal energy
372 kWh
Rated charge & discharge rate
≤ 0.5 P
Thermal management method
Intelligent air cooling
Dimension (W/H/D) mm
750 * 2280 * 1500
Weight
2600 kg
High Voltage Air-Cooled Battery Clusters
Modular Design
Highly integrated, redundancy-reducing design for easy transportation, installation, and maintenance
Safety and Reliability
IP54 protection level for the cabinet, double-layer flame retardant and explosion-proof design
Long life Mechanism
Perfect system air duct design, effective temperature control to extend system life
Intelligent Energy Management
Intelligent energy management control, adaptive load-side power generation. Remote monitoring, reducing manual on-site inspections
Parameters
R372A0
Cell
C280
Grouping mode
416S1P
Nominal voltage
1331.2 V
Voltage range
1164.8 – 1497.6 V
Nominal capacity
280 Ah
Nominal energy
372 kWh
Rated charge & discharge rate
≤0.5 P
Thermal management method
Intelligent air cooling
Dimension (W/H/D) mm
750 * 2280 * 1500
Weight
2600 kg
