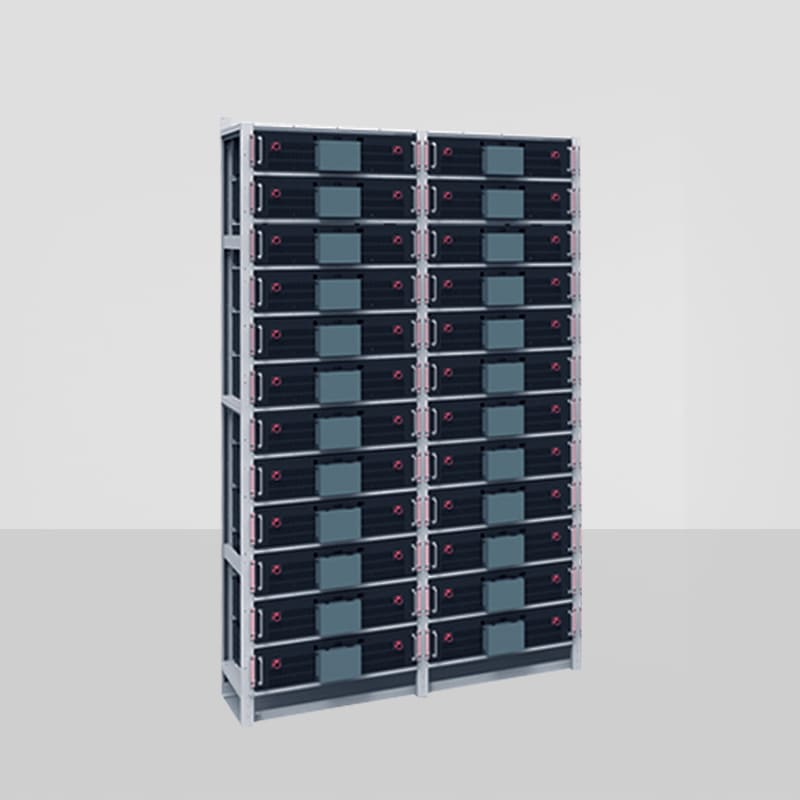

High Voltage Liquid-Cooled Battery Cluster
BMS & EMS Dual Control Integration
Dual intelligent control of BMS + EMS, flexible strategy response to improve discharge
Long Life Management
Full life cycle management mechanism, including new liquid cooling technology, intelligent battery health management, etc.
Cost Reduction and Efficiency
Highly integrated, energy density increased by 30%, system loss decreased by 20%
Efficient Thermal Management
High-efficiency thermal management, strictly control system temperature <35℃, temperature difference ≤3℃, maximum temperature ≤50℃
Parameters
R372L0
Cell
C280
Grouping mode
416S1P
Nominal voltage
1331.2V
Voltage range
1164.8-1497.6V
Nominal capacity
280Ah
Nominal energy
372kWh
Rated charge & discharge rate
≤0.5P
Thermal management method
Intelligent liquid cooling
Dimension (W/H/D) mm
925 * 2450 * 1165
Weight
2700kg
High Voltage Liquid Cooled Battery Cluster
BMS & EMS Dual Control Integration
Dual intelligent control of BMS + EMS, flexible strategy response to improve discharge
Long Life Management
Full life cycle management mechanism, including new liquid cooling technology, intelligent battery health management, etc.
Cost Reduction and Efficiency
Highly integrated, energy density increased by 30%, system loss decreased by 20%
Efficient Thermal Management
High-efficiency thermal management, strictly control system temperature <35℃, temperature difference ≤3℃, maximum temperature ≤50℃
Parameters
R372L0
Cell
C280
Grouping mode
416S1P
Nominal voltage
1331.2V
Voltage range
1164.8-1497.6V
Nominal capacity
280Ah
Nominal energy
372kWh
Rated charge & discharge rate
≤0.5P
Thermal management method
Intelligent liquid cooling
Dimension (W/H/D) mm
925 * 2450 * 1165
Weight
2700kg
