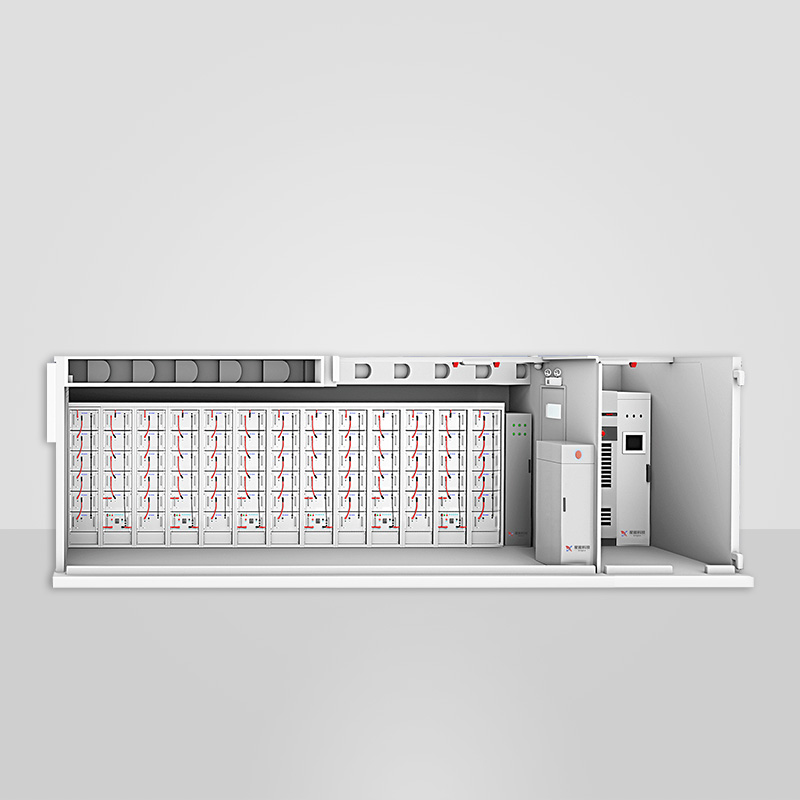

High Voltage Air-Cooled Container
Modular Design
Highly integrated, redundancy-reducing design for easy transportation, installation, and maintenance
Safety and Reliability
IP54 protection level for the cabinet, double-layer flame retardant and explosion-proof design
Long life Mechanism
Perfect system air duct design, effective temperature control to extend system life
Intelligent Energy Management
Intelligent energy management control, adaptive load-side power generation. Remote monitoring, reducing manual on-site inspections
Parameters
C2236A1
C528A1
Cell
C280
Grouping mode
416S1P * 6
416S1P * 14
Nominal voltage
1331.2 V
Voltage range
1164.8 – 1497.6 V
Nominal energy
2.236 MWh
5.218 MWh
Rated charge & discharge rate
≤0.25 P
IP Grade
IP54
Thermal management method
Intelligent air cooling
Dimension (W/H/D) mm
6100 * 2600 * 2100
12200* 2600 * 2100
Weight
22 t
58 t
Operating temperature
-20-55 ℃
Communication interface
RS486、CAN、以太网
High Voltage Air-cooled Containerized Series
Modular Design
Highly integrated, redundancy-reducing design for easy transportation, installation, and maintenance
Safety and Reliability
IP54 protection level for the cabinet, double-layer flame retardant and explosion-proof design
Long life Mechanism
Perfect system air duct design, effective temperature control to extend system life
Intelligent Energy Management
Intelligent energy management control, adaptive load-side power generation. Remote monitoring, reducing manual on-site inspections
Parameters
C2236A1
C5218A1
Cell
C280
C280
Grouping mode
416S1P * 6
416S1P * 14
Nominal voltage
1331.2 V
1331.2 V
Voltage range
1164.8 – 1497.6 V
1164.8 – 1497.6 V
Nominal energy
2.236 MWh
5.218 MWh
Rated charge & discharge rate
≤ 0.25 P
≤ 0.25 P
IP Grade
IP54
IP54
Thermal management method
Intelligent air cooling
Intelligent air cooling
Dimension (W/H/D) mm
6100 * 2100 * 2600
12200 * 2100 * 2600
Weight
22 t
58 t
Operating temperature
-20 – 55 ℃
-20 – 55 ℃
Communication interface
RS485CANEthernet
RS485CANEthernet
Energy Storage Solutions

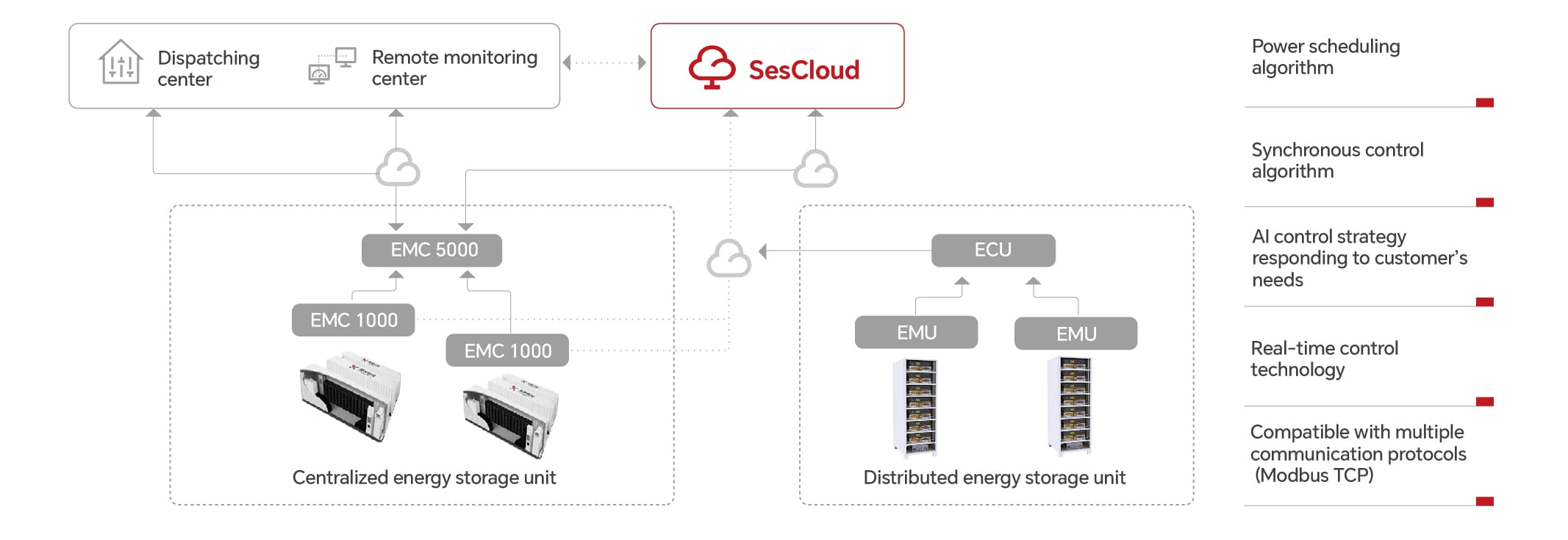

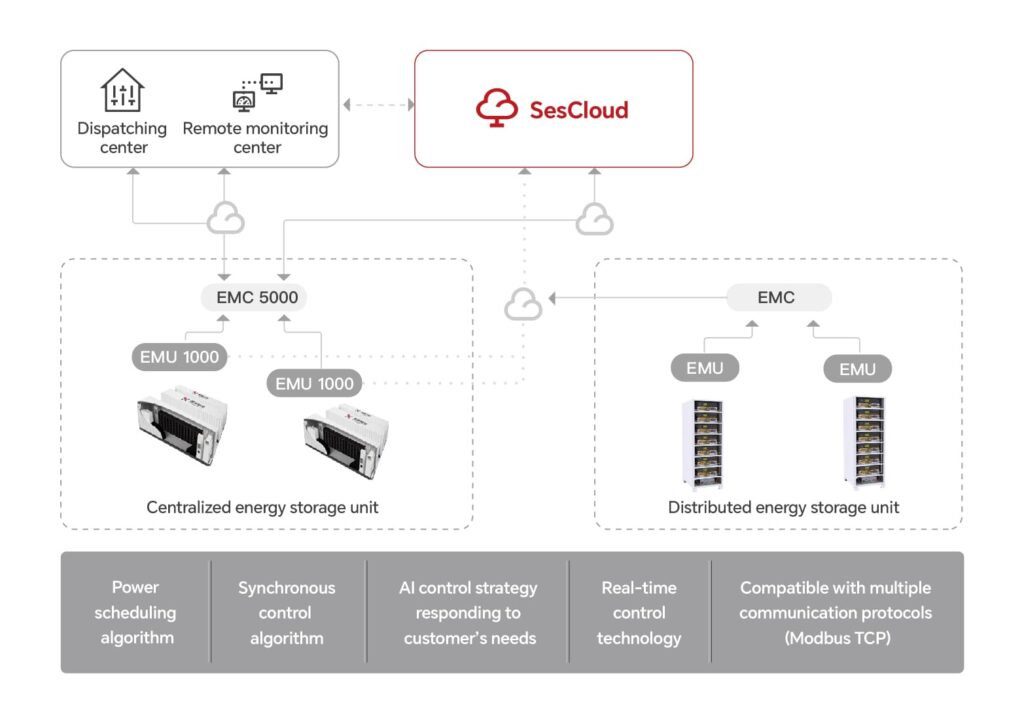

Global Architecture of Smart Management
