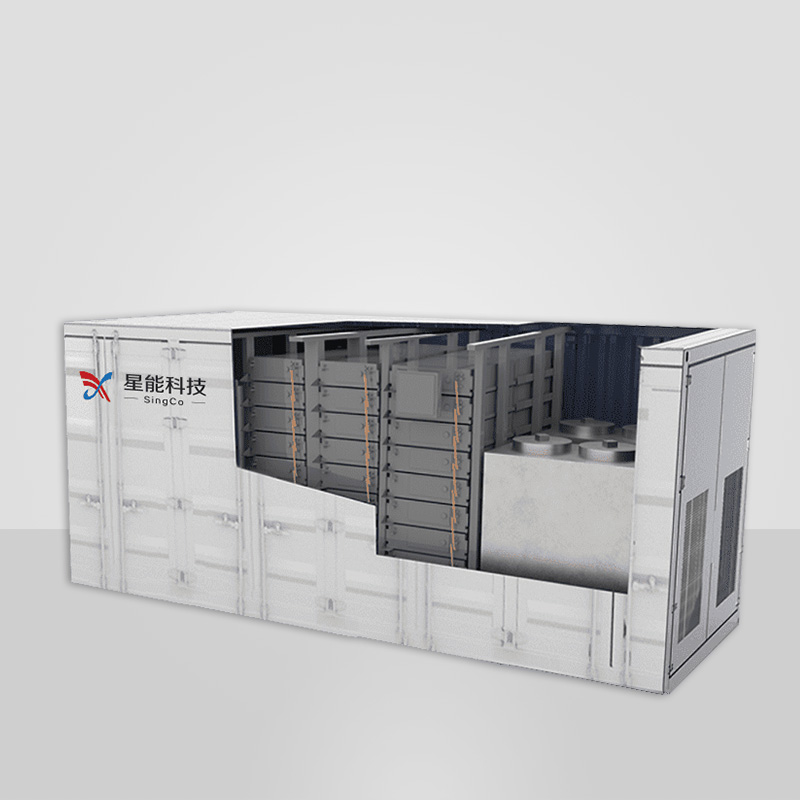

High Voltage Liquid-Cooled Container
BMS&EMS Dual Control Integration
BMS+EMS dual intelligent control; flexible strategy response; increased discharge capacity
Long Life Management
Full life cycle management mechanism, including new liquid cooling technology, intelligent battery health management
Cost Reduction and Efficiency Improvement
High integration, with a 30% increase in energy density and a 20% decrease in system loss
Efficient Thermal Management
Efficient thermal management: strict control of system temperature <35°C, temperature difference≤3°C and maximum temperature ≤50°C
High Voltage Liquid-Cooled Container Series Products
BMS&EMS Dual Control Integration
BMS+EMS dual intelligent control; flexible strategy response; increased discharge capacity
Long Life Management
Full life cycle management mechanism, including new liquid cooling technology, intelligent battery health management
Cost Reduction and Efficiency Improvement
High integration, with a 30% increase in energy density and a 20% decrease in system loss
Efficient Thermal Management
Efficient thermal management: strict control of system temperature <35°C, temperature difference≤3°C and maximum temperature ≤50°C
Parameters
C2981L1
C6709L1
Cell
C280
C280
Grouping mode
416S1P * 8
416S1P * 18
Nominal voltage
1331.2 V
1331.2 V
Voltage range
1164.8 – 1497.6 V
1164.8 – 1497.6 V
Nominal energy
2.981 MWh
6.709 MWh
Rated charge & discharge rate
≤ 0.5 P
≤ 0.5 P
IP Grade
IP54
IP54
Thermal management method
Intelligent liquid cooling
Intelligent liquid cooling
Dimension (W/H/D) mm
6100 * 2900 * 2600
12200 * 2900 * 2600
Weight
34 t
75 t
Operating temperature
-20 – 60 ℃
-20 – 60 ℃
Communication interface
RS485CANEthernet
RS485CANEthernet
C2981L1
C6709L1
Cell
C280
C280
Grouping mode
416S1P*8
416S1P*18
Nominal voltage
1331.2 V
1331.2 V
Voltage range
1164.8-1497.6 V
1164.8-1497.6 V
Nominal energy
2.981 MWh
6.709 MWh
Rated charge & discharge rate
≤0.5 P
IP Grade
IP54
Thermal management method
Intelligent liquid cooling
Dimension（W/H/D）mm
6100*2600*2900
12200*2600*2900
Weight
34 t
75 t
Operating temperature
-20～60 ℃
Communication interface
RS485CANEthernet
