More Versatility
- Compatible with hybrid PCS for PV+ESS application
- Scalable from kWh to MWh
- Applicable for ESS, charging, microgrids and more scenarios
Solutions & Products

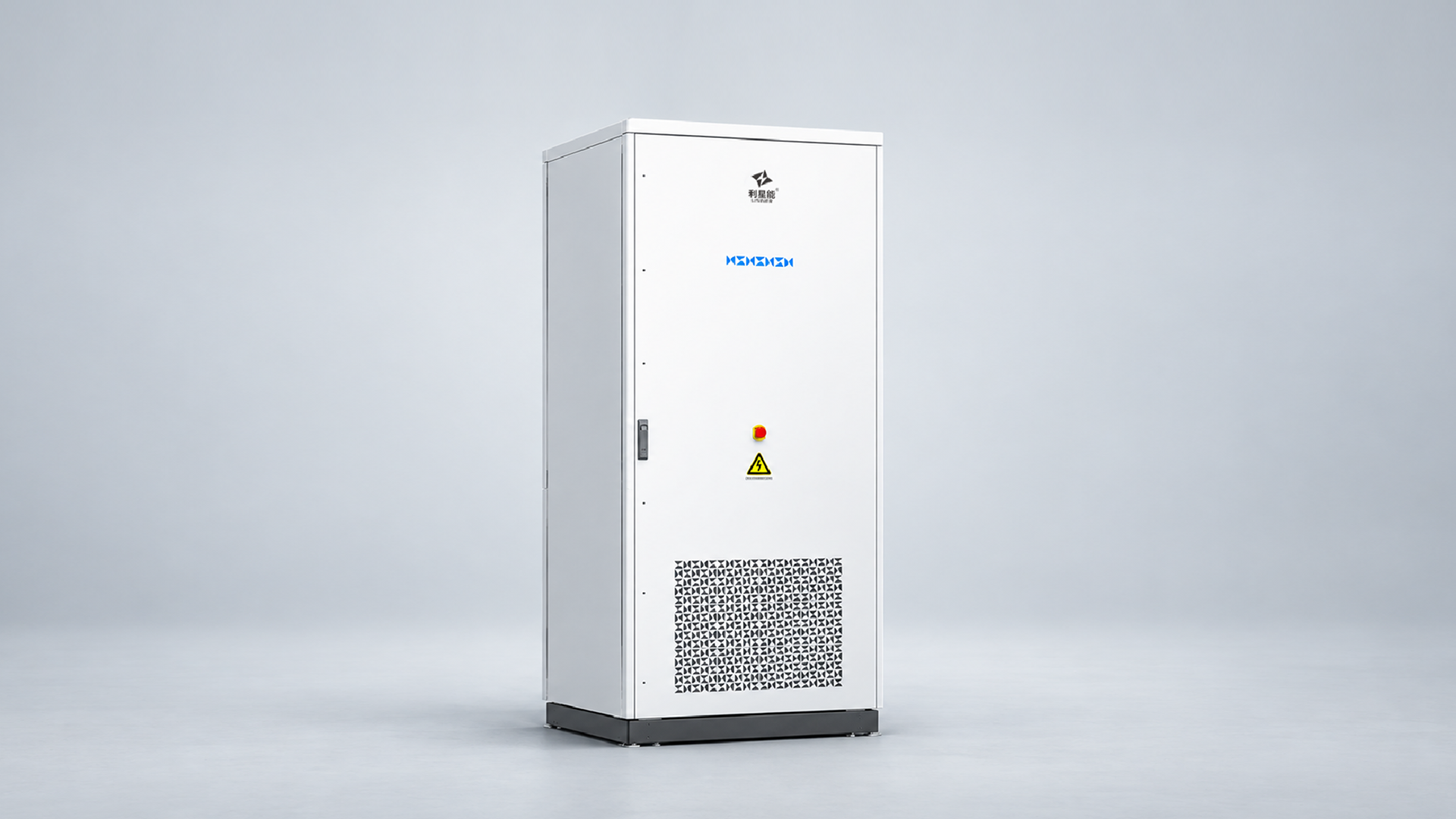

JANUS-R261 / JANUS-R261DC
Lower inverter losses, flexible scalability and plug-and-play deployment improves project economics.
High Efficiency
Easier Deployment
Safe & Reliable
PRODUCT SPECIFICATIONS
| Battery System Capacity | Battery Voltage Range | Allowable Ambient Temperature | Communication Interface |
| 261.24kWh | 728V~936V | -20°C~55°C (> 45°C Derating Required) | Ethernet, RS485, CAN |
| Cell Type | Dimensions (W*D*H) | Allowable Ambient Humidity | Communication Protocol |
| LFP3.2V/314Ah | 1087×1513.45×2250±5mm | 0~95% (Non-condensing) | Modbus RTU, Modbus TCP, CAN 2.0B, IEC 61850 |
| Battery System Configuration | Weight | Maximum Operating Altitude | Certifications |
| 1P260S | ≈2380kg | ≤2000m | GB/T 36276, GB/T 34120, GB/T 34131 |
| Rated Charge/Discharge Rate | Ingress Protection Rating | Thermal Management Method | Warranty |
| 0.5P | IP54 | Intelligent Liquid Cooling | 5 years |
| Nominal Voltage | Noise Level | Fire Protection Solution | |
| 832V | 75±5dB@1m | Smoke Detector, Temperature Detector, Pack-Level Fire Protection, Cabin-Level Fire Protection, Aerosol Fire Suppression | |
PRODUCT SPECIFICATIONS
| Battery System Capacity | Battery Voltage Range | Allowable Ambient Temperature | Communication Interface |
| 261.24kWh | 728V~936V | -20°C~55°C (> 45°C Derating Required) | Ethernet, RS485, CAN |
| Cell Type | Dimensions (W*D*H) | Allowable Ambient Humidity | Communication Protocol |
| LFP3.2V/314Ah | 1087×1167.36×2250±5mm | 0~95% (Non-condensing) | Modbus RTU, Modbus TCP, CAN 2.0B, IEC 61850 |
| Battery System Configuration | Weight | Maximum Operating Altitude | Certifications |
| 1P260S | 2215±58kg | ≤2000m | IEC 62619, IEC 62477-1, IEC 61008, UN 38.3 |
| Rated Charge/Discharge Rate | Ingress Protection Rating | Thermal Management Method | Warranty |
| 0.5P | IP54 | Intelligent Liquid Cooling | 5 years |
| Nominal Voltage | Noise Level | Fire Protection Solution | |
| 832V | 75±5dB@1m | Smoke Detector, Temperature Detector, Pack-Level Fire Protection, Cabin-Level Fire Protection, Aerosol Fire Suppression | |
